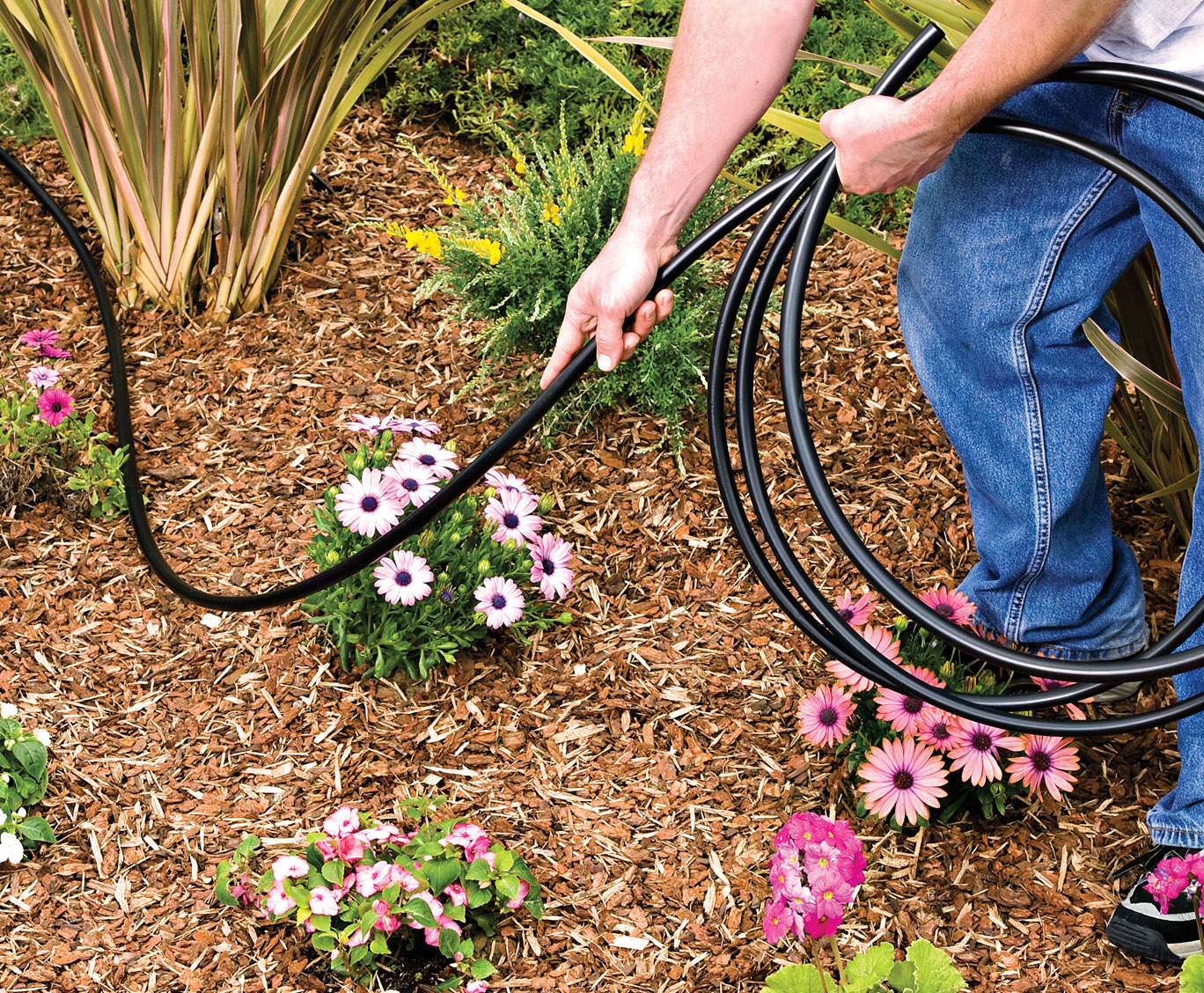

The DIG G77AS Landscape Drip Irrigation Kit provides a complete starting point for efficient, low-volume watering of groundcovers, shrubs, trees, flowers, roses, vegetable gardens and vines. Designed to connect to a standard outdoor faucet or garden hose, the kit includes the tubing, pressure control, emitters and fittings needed to irrigate up to approximately 150 sq. ft. and can be expanded as the landscape grows.
Complete drip irrigation starter system
- Covers up to approximately 150 sq. ft.; expandable up to about 400 sq. ft. with additional compatible components
- Includes 50 ft. of 1/2-inch polyethylene drip tubing (.600 in. ID x .700 in. OD)
- Includes 50 ft. of 1/4-inch micro tubing
- Includes 26 pressure-compensating drip emitters: twenty 1 GPH, two 0.5 GPH, two 2 GPH and two 4 GPH
- Includes a 3/4-inch backflow preventer and preset 25 PSI pressure regulator
- Includes a screened swivel adapter, compression fittings, barbed fittings, tubing stakes, ball valve, hole punch, hose ends and goof plugs
- No special tools or glue required for normal installation
Operating specifications
- Maximum incoming pressure: 100 PSI
- Recommended operating range: 10–45 PSI
- Included pressure regulator output: 25 PSI
- Maximum recommended system flow: 220 GPH (3.7 GPM)
- Total flow of included emitters: approximately 32 GPH (0.53 GPM)
The pressure-compensating emitters help provide consistent flow across the layout, making the system suitable for both level landscapes and more challenging areas such as slopes or irregularly shaped planting beds.
